Casement Window

Dongmei 115 Series Inward-Opening Casement Window

Air Tightness	Water Tightness	Wind Resistance	U-Value	Sound Insulation
level 7	level 5	level 8	1.5W(㎡-K)	40db

1.Highstrength 6063T5 aluminum profiles.

2.Independent drainage design for strong water tightness.

3.304 stainlesssteel flyscreen for safe, durable ventilation.

4.Vertical isothermal design for enhanced insulation and energy efficiency.

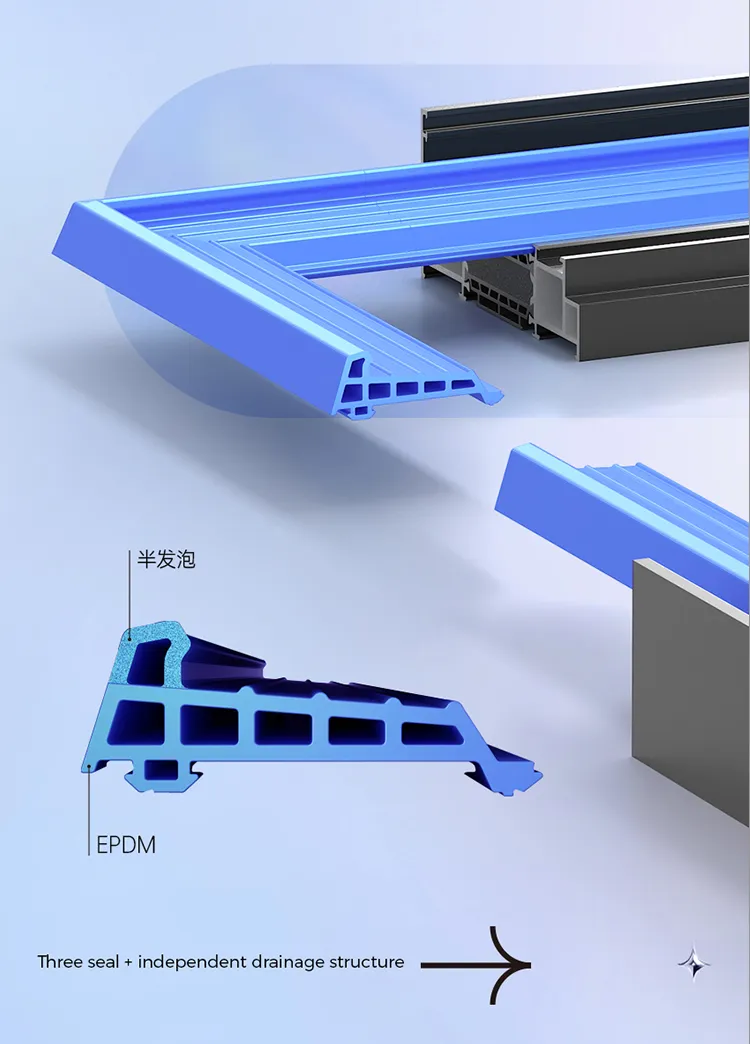

5.Tripleseal gasket system for water, moisture, and haze protection.

6.Coextruded softhard bent gasket for reliable sealing performance.

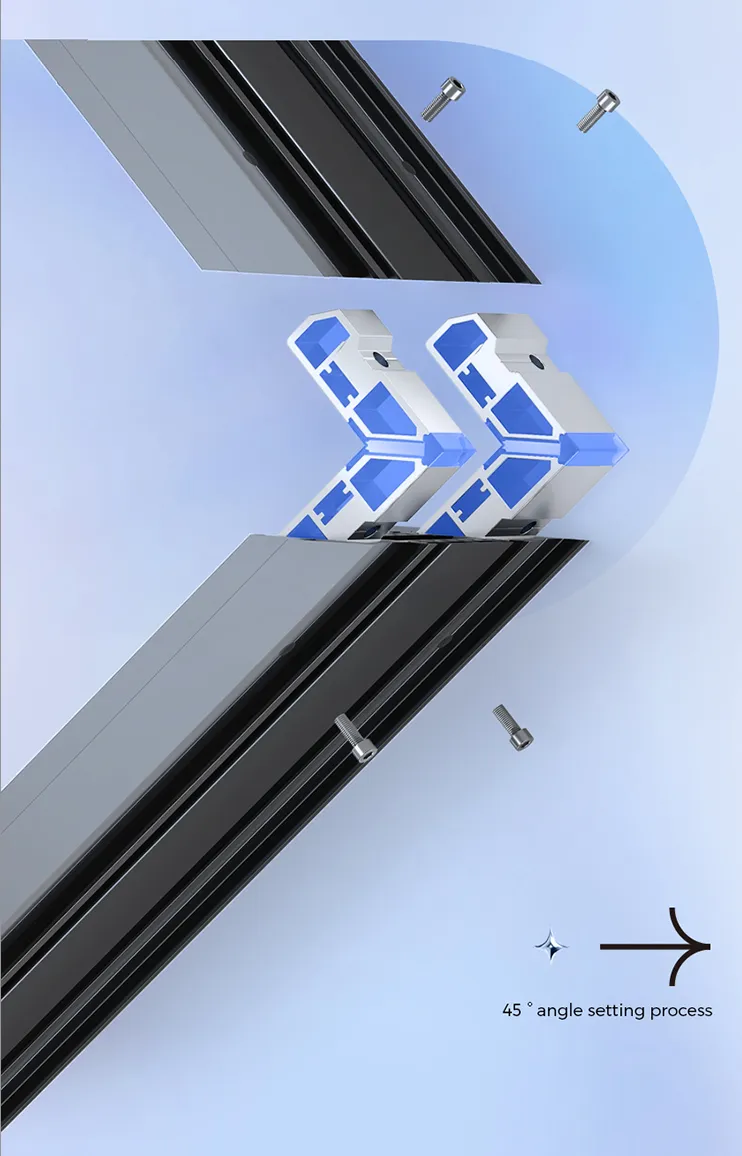

7.Injected corner connectors for stronger, more waterproof joints.

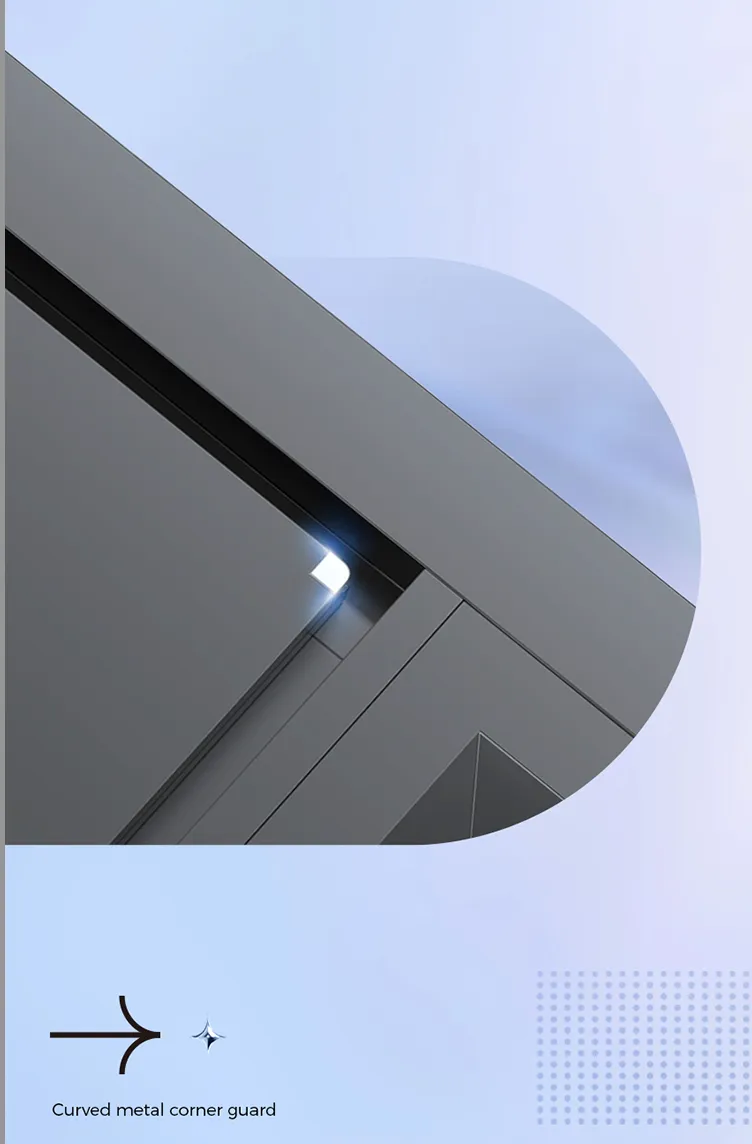

8.Premium metal corner guards for enhanced safety for you and your family.

Category	Color Options
Interior Color	Solid Color: Starry Sky Gray
Exterior Color	Mocha Brown, Starry Sky Gray

Item	Specification
Project Name	-

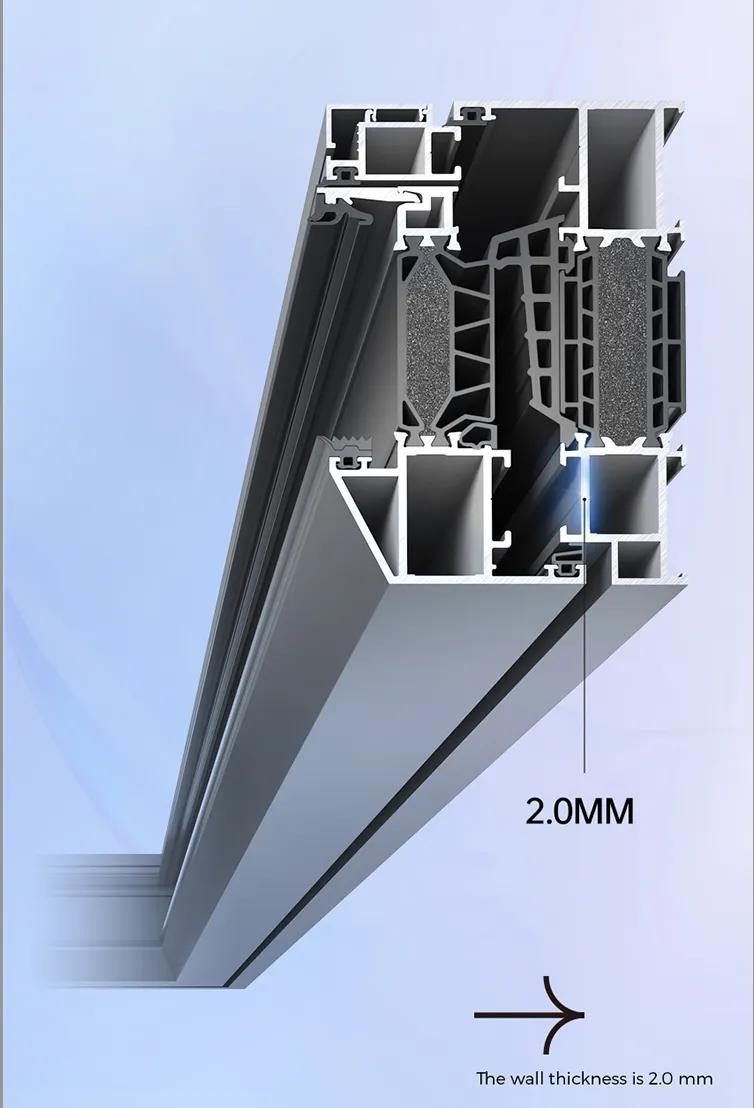

Main Material Thickness	2.0mm

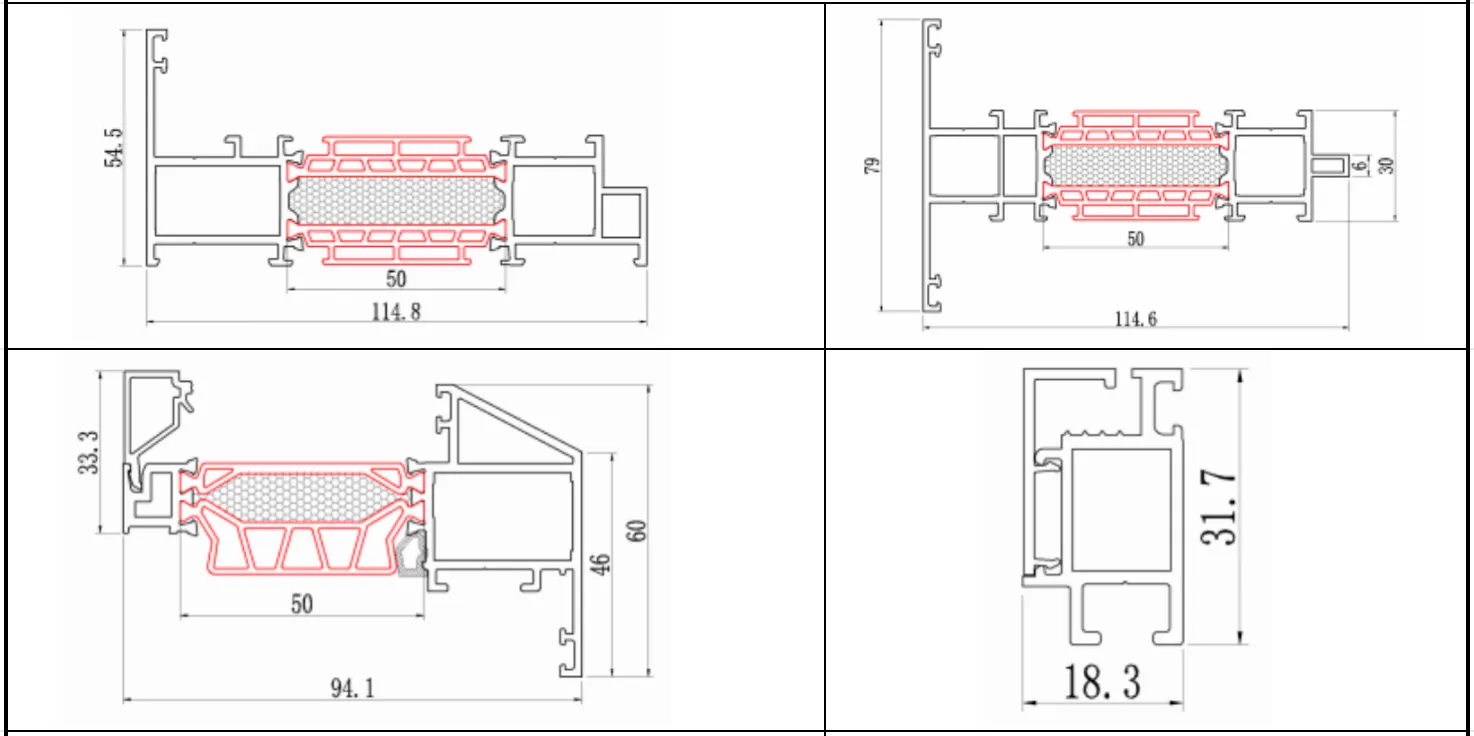

Glass Sash Width & Thickness	Sash Width: 60mm; Sash Thickness: 94mm; Glass Notch Width: 50mm
Screen Sash Width & Thickness	Sash Width: 31.7mm; Sash Thickness: 18.2mm
Frame Width & Height	Wall Occupancy of Outer Frame: 115mm; Narrow Frame Width: 30mm; Wide Frame Width: 54.5mm

Configuration	Glass for Fixed/Opening Sash

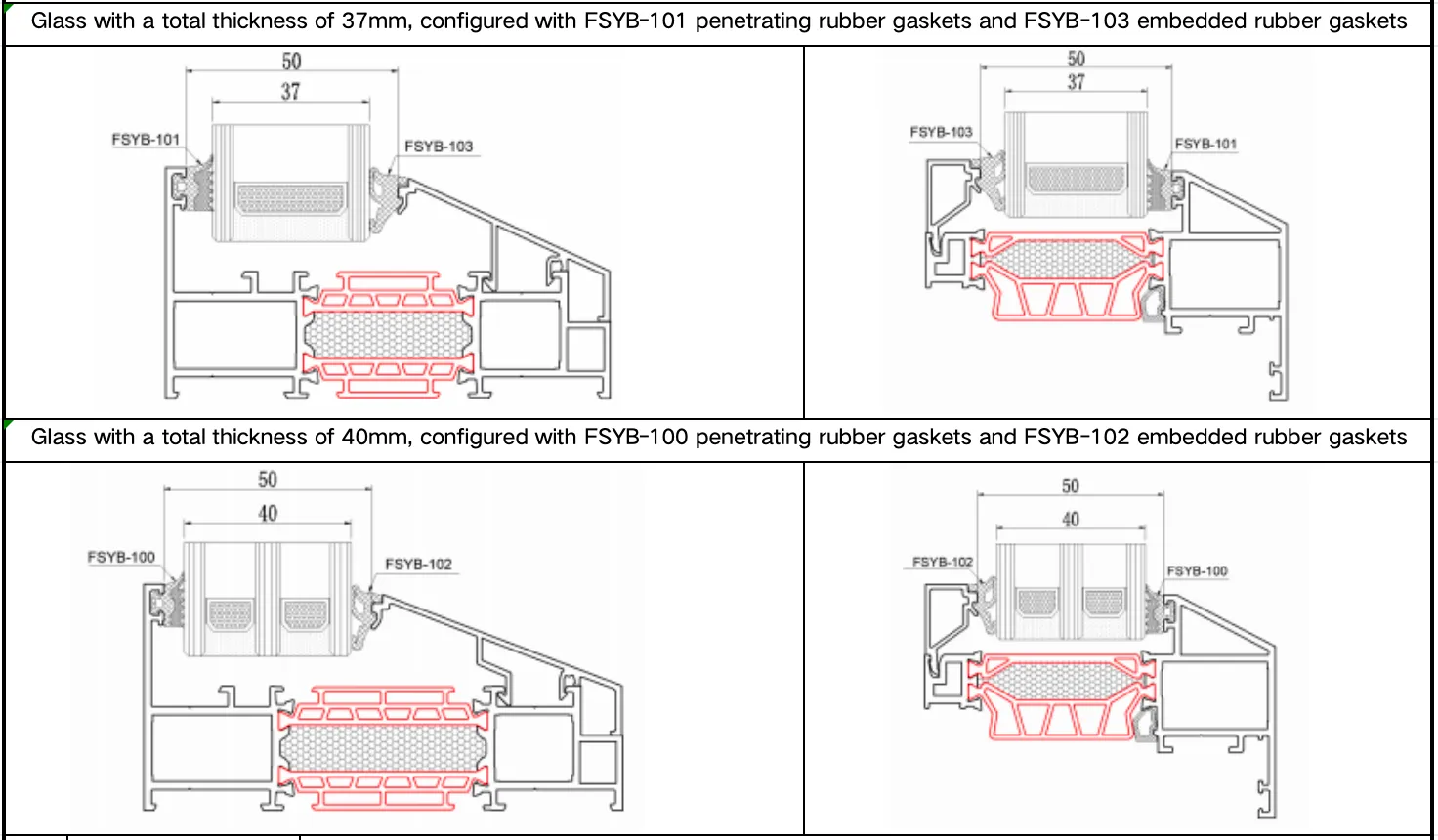

Standard	5mm+27A+5mm insulating glass, applicable for standard area (0–3㎡). Rubber gasket configuration refers to the 37mm total thickness glass solution shown above.

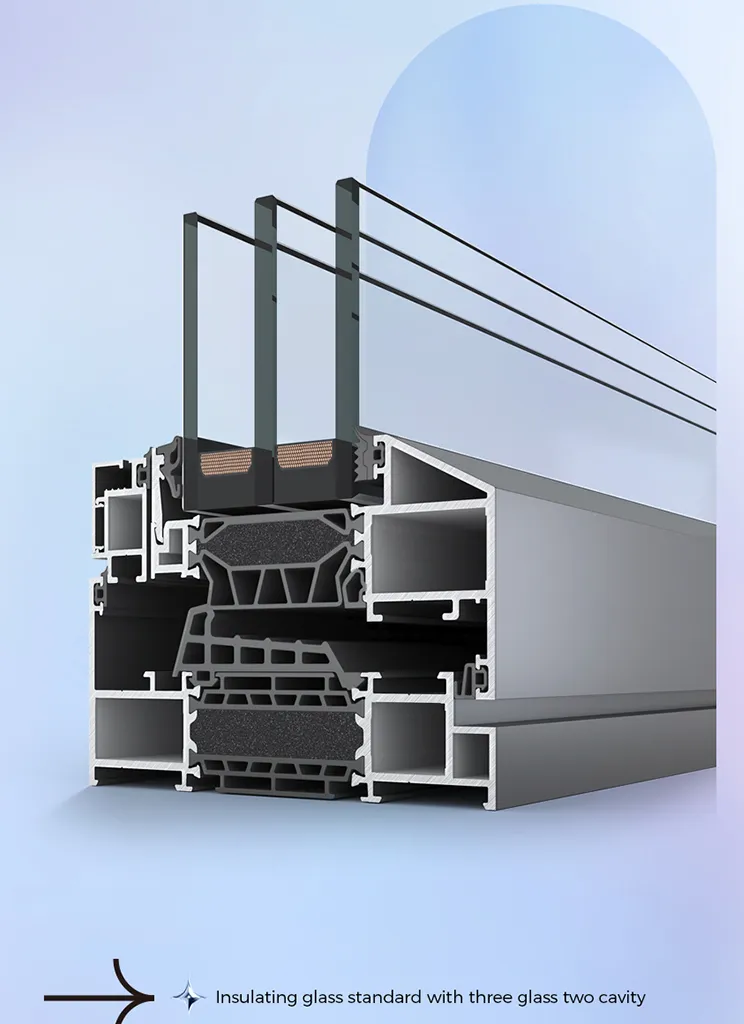

Optional	5mm+12A+6mm+12A+5mm triple-glazed double-cavity glass, applicable for standard area (0–3㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above.
Optional	6mm+24A+6mm insulating glass, applicable for standard area (3㎡–3.5㎡). Rubber gasket configuration refers to the 37mm total thickness glass solution shown above.
Optional	8mm+24A+8mm insulating glass, applicable for standard area (3.5㎡–4.5㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above.
Optional	10mm+20A+10mm insulating glass, applicable for standard area (4.5㎡–6.5㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above.
Optional	12mm+16A+12mm insulating glass, applicable for standard area (6.5㎡–12㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above.
Optional	For other requirements, calculate according to the total glass thickness of 37/40mm and configure the corresponding accurate rubber gaskets.

Configuration Type	Specification
Standard	High-clarity mesh as standard; diamond mesh available as an option. High-transparency mesh is not supported.

Dual inward-opening. The glass sash is configured with tilt & turn windows as standard, and inward casement windows are available as an option.

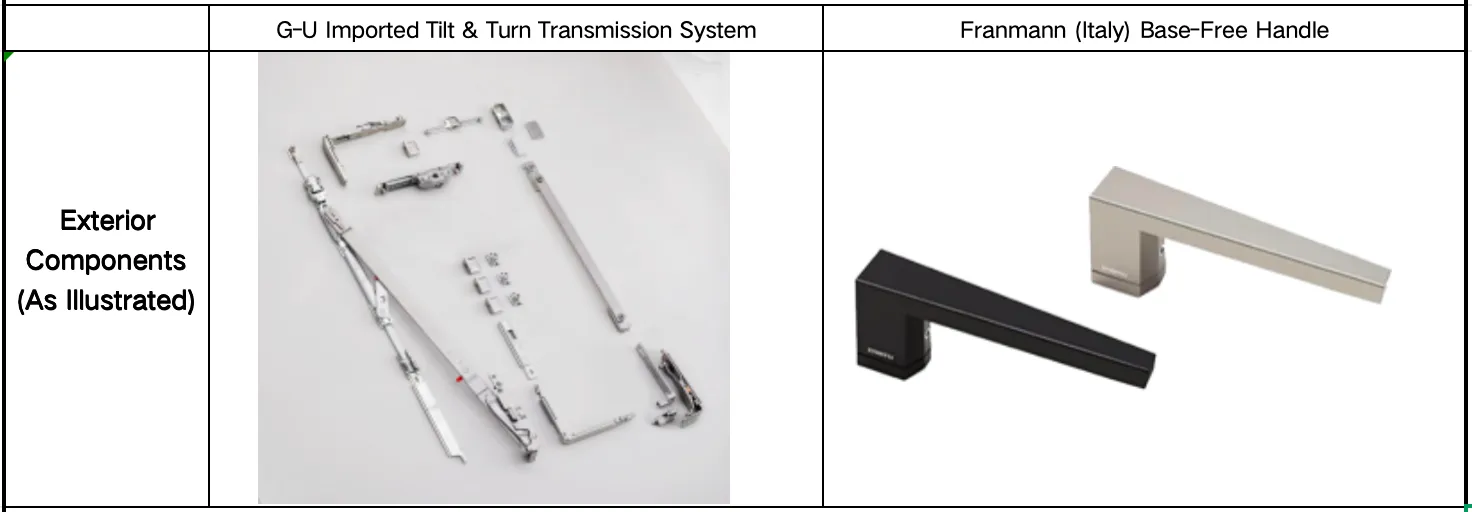

1.Tilt & turn: G-U concealed tilt & turn internal hardware. The standard opening angle is 90°, and 180° is available as an option. 2.Inward casement (non-tilt & turn): CMECH 180° inward casement internal hardware, including a full set of CMECH inward-opening hinges, transmission boxes, lock points & strike plates, and load-bearing blocks.

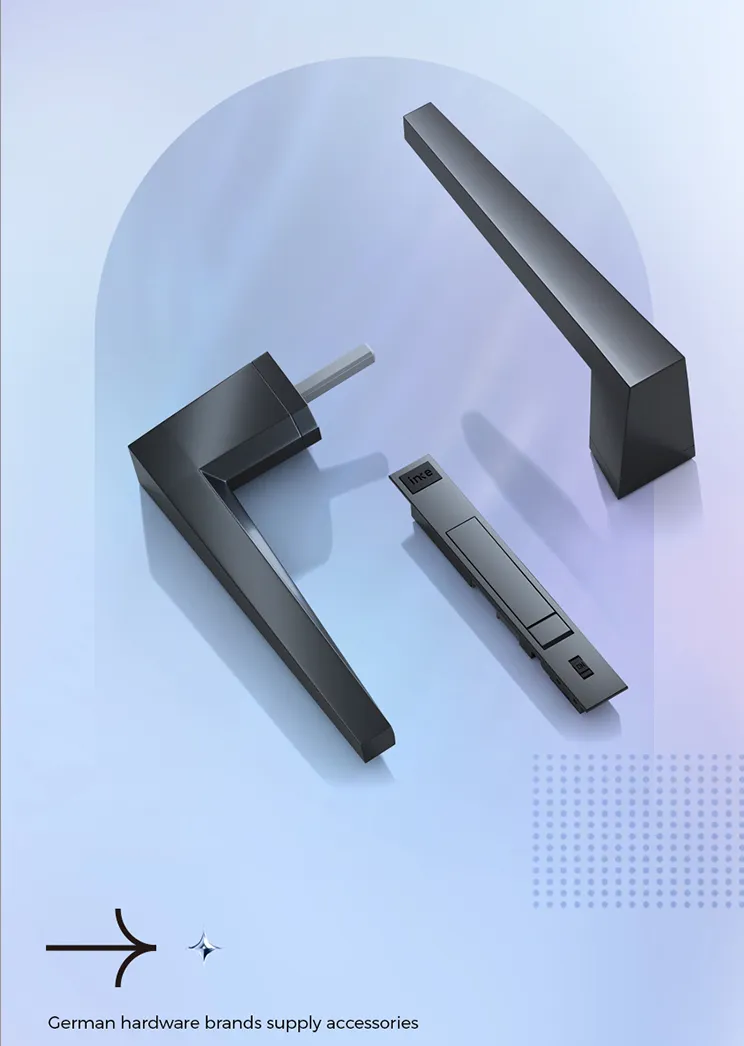

Franmann base-free handles. The standard color is pearl brown, and graphite gray is available as an option.

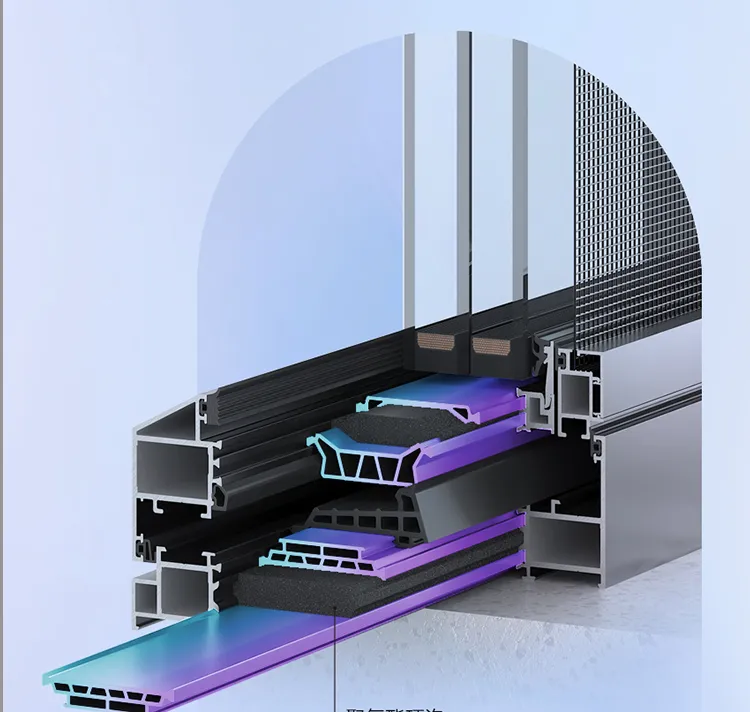

Special-shaped multi-cavity thermal insulation strips.
Polyurethane foam injection process.
Integrated vulcanized welded duckbill rubber gaskets.

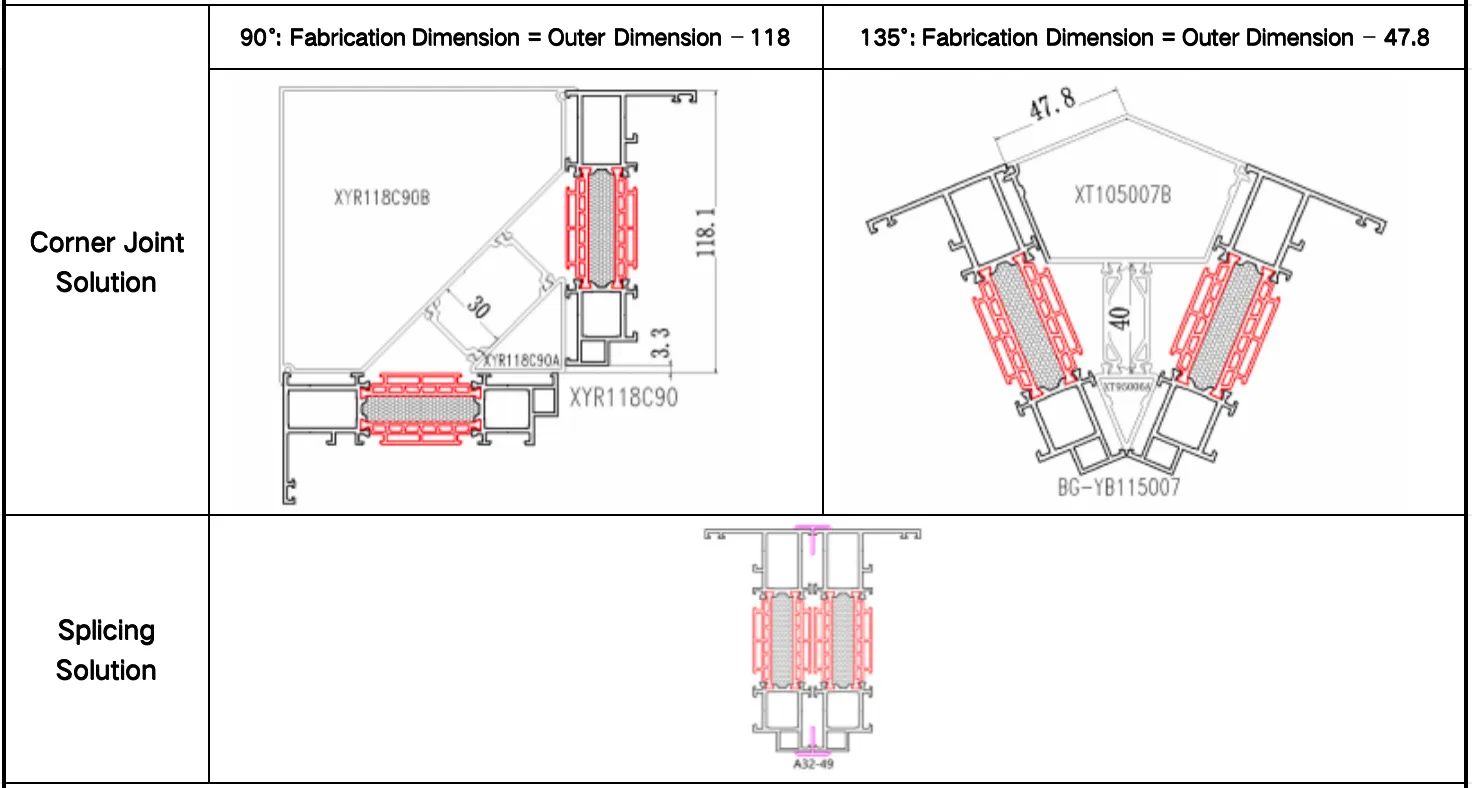

Frame expansion corner key gluing process and glass sash corner crimping gluing process.
Corner-assembled gluing plastic plug process.
Stainless steel quick-installation corner guards.
Opening sash size limits: Sash width 500–800mm, sash height 500–1500mm.

Please note the size requirements and specifications for the opening sashes of casement windows; prioritize guiding customers to design according to standard sash dimensions.
For the design of fixed window sizes, it is also necessary to consider the glass strength requirements, as well as the feasibility of processing, handling and installation. Generally, the surface size of 5mm insulating glass should not exceed 1500×1600mm, and the area should not exceed 2.5 square meters.(For oversized glass, please refer to the configuration requirements for oversized insulating glass.)
Before window and door design, it is necessary to know the thickness of the installation wall to select the corresponding series and wrapping sleeves.
When designing the handle height of conventional casement windows, consideration should be given to installing it at a distance of about 1500mm from the ground (1300–1600mm).
Standard windows with both width and height exceeding 2.5m must be split into frames and equipped with splicing strips. For special cases, special remarks should be made after communicating with the customer service.
Data and information shall be subject to the updated information of the company.
